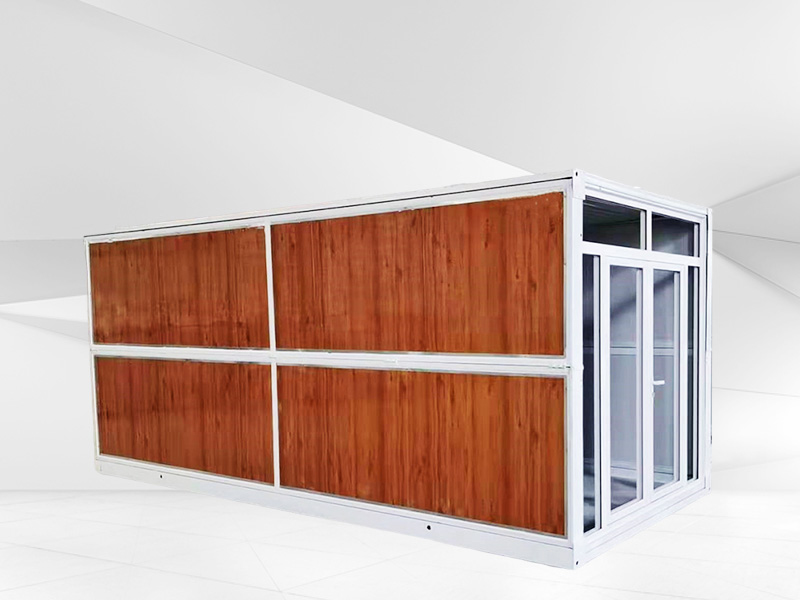

As a new foldable container house in recent years, using steel frame material, not only has the characteristics of convenient construction, fast build,mobile and superior fireproof and heat preservation performance, long life, etc., but also does not produce any construction waste, do not change the geological environment of the site, and gradually get the majority of construction companies and home buyers.
asic Features | External Dimension(mm) | 5800L*2480W*2560H |
Internal Dimension(mm) | 5640L*2320W*2400H | |
Folded state(mm) | 5800*2480*380 | |
Total mass(kg) | 1000 | |
Frame structure | Top main beam | Q235B rectangular square pipe 60×80×1.5mm |
Bottom main beam | Q235B rectangular square pipe 80×140×1.5mm | |
Front and rear main beams | Q235B rectangular square pipe 60×80×1.5mm | |
Sidewall frames | Q235B rectangular square pipe 40×80×1.5mm | |
Bottom load-bearing | Q235B rectangular square pipe 40×40×1.5mm | |
Top load-bearing | Q235B rectangular square pipe 40×40×1.5mm | |
Hanging head | Q235B 125*200*(4mm) | |
Folding hinges | Galvanized hinge 13mm | |
Box top | Integral frame protective coating | Electrostatic spraying/high gloss white |
Exterior top plate | Galvanized plate 0.5mm | |
Internal ceiling | Color steel veneer V930*0.25㎜ | |
Wall panels | Insulating glass wool | Glass wool roll 50mm (capacity 16kg) |
Side walls | 50mm composite board 0.23mm+basalt wool(capacity 80kg)+0.23mm | |
Front and rear wall panels | 65mm composite board 0.23mm+basalt wool(capacity 80kg)+0.23mm | |
Customized Services | All parameters can be customized | |
